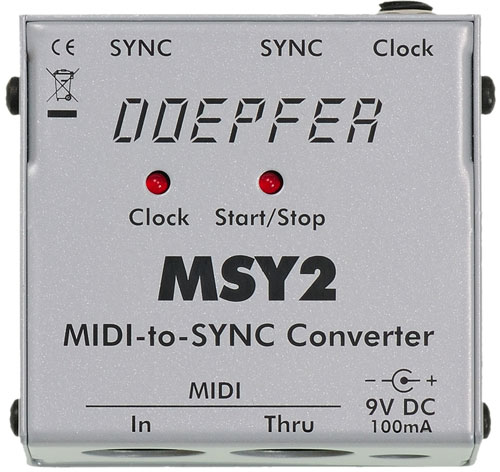

The Doepfer MSY2 converts the "MIDI IN" signal to "DIN SYNC" and a Clock pulse signal

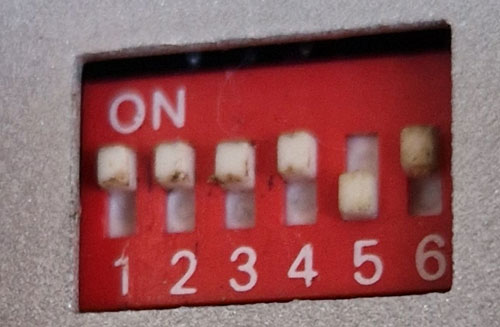

DIP Switches on the bottom of the Doepfer MSY2
DIP Switches 1 to 4 control the clock sync divide factor
| 1 | 2 | 3 | 4 | factor | beats per measure | comment |
| 1 | 1 | 1 | 1 | /1 | 96 | MIDI clock speed |
| 1 | 1 | 1 | 0 | /2 | 48 | Roland CR-78 external clock speed |
| 1 | 1 | 0 | 1 | /3 | 32 | double the speed for 4/4 measure (for controlling drum computers) |
| 1 | 1 | 0 | 0 | /4 | 24 | |
| 1 | 0 | 1 | 1 | /5 | ||
| 1 | 0 | 1 | 0 | /6 | 16 | number of steps for 4/4 measure |
| 1 | 0 | 0 | 1 | /7 | ||
| 1 | 0 | 0 | 0 | /8 | 12 | |
| 0 | 1 | 1 | 1 | /9 | ||
| 0 | 1 | 1 | 0 | /10 | ||
| 0 | 1 | 0 | 1 | /11 | ||
| 0 | 1 | 0 | 0 | /12 | 8 | every 2nd step for 4/4 measures |
| 0 | 0 | 1 | 1 | /13 | ||
| 0 | 0 | 1 | 0 | /14 | ||
| 0 | 0 | 0 | 1 | /15 | ||
| 0 | 0 | 0 | 0 | /16 | 6 |
DIP Switches 5 and 6 control the clock parity
| DIP | Polarity | Value | Comment |
| 5 | Clock | 1 = standard for SYNC applications | The Clock polarity switch determines whether the falling or rising edge appears on the SYNC clock output when a MIDI clock is received. Normally this setting is of no account as the clock pulse width (i.e. the time difference between the falling and rising edge) is very small (about 4 milliseconds in the 1:1 setting). If you have the impression that there is a small time difference between your device and MIDI clock you may change the setting of the clock polarity. |
| 6 | Start/Stop | 1 = standard for SYNC applications | The Start/Stop polarity switch is used only for special applications (e.g. for drum computers with inverse Start/Stop control: 0V=Start, +5V=Stop) |
