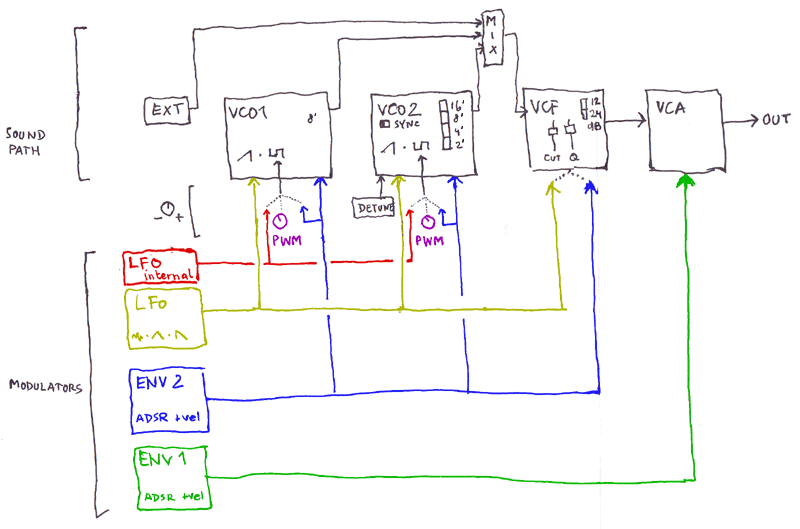

The VCO is actually a DCO, which is still analog. VCO1 is standard set to 8".
The modulator for the VCO-PWM and for the VCF can be selected.
The (red) LFO modulating the pulse width is "internal" and can not be adjusted (p. 14 manual "PWM Source").
The amount of modulation for all modulators can be negative or positive, which is kinda cool.
When MIX is in the "1&2" position, both VCO's and the external signal are at maximum volume.

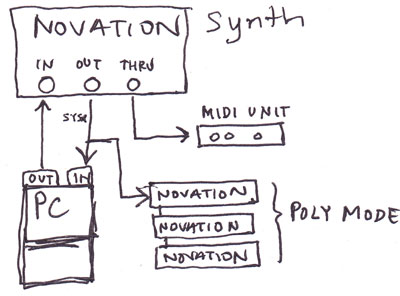

Novation BassStation devices can also be stacked to create a polyphonic synth setup.
