Operator Waveforms

Here are the 8 different wave forms the Yamaha YM2414 Sound Chip generates. Next to the Wave Number is the description of the contents of one waveform loop. The Triangle is made up of Sine Waves. It's an approximation. It's trianglish.

I used the Soundcard Scope software from Christian Zeitnitz.

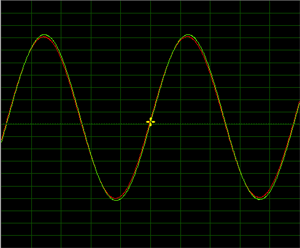

Wave 1: Sine

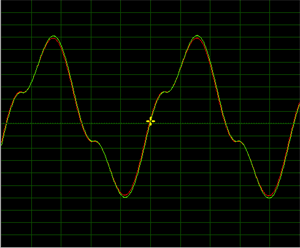

Wave 2: Triangle

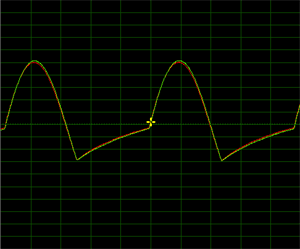

Wave 3: Half Sine + Flatline

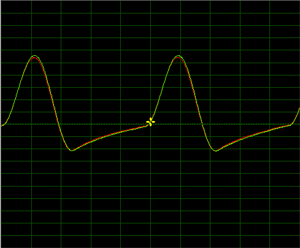

Wave 4: Half Triangle + Flatline

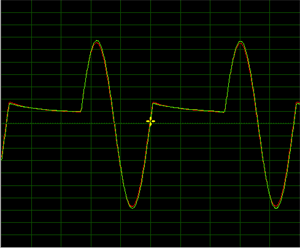

Wave 5: Double Fast Sine + Flatline

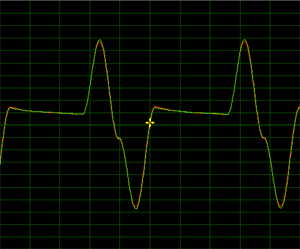

Wave 6: Double Fast Triangle + Flatline

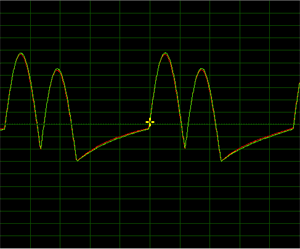

Wave 7: Double Half Sine Double Fast + Flatline

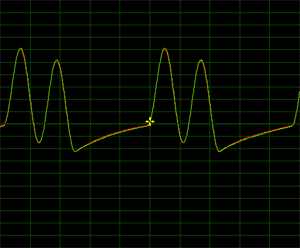

Wave 8: Double Half Triangle Double Fast + Flatline
