The signal flow was more complex than I initially thought. And as so many machines from that era, no LFO on the VCA.

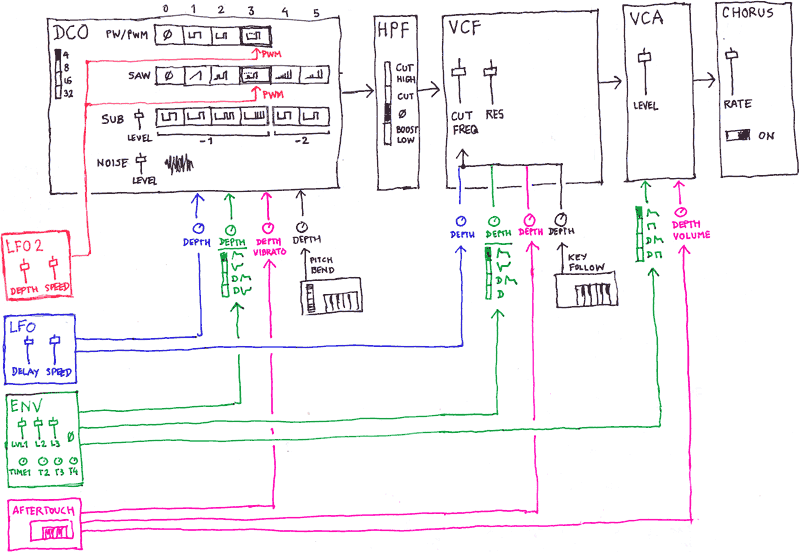

This is the diagram for the Tone settings, the Patch settings are not displayed.
