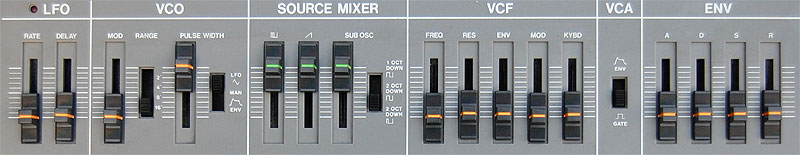

The front panel
The flow on the front panel

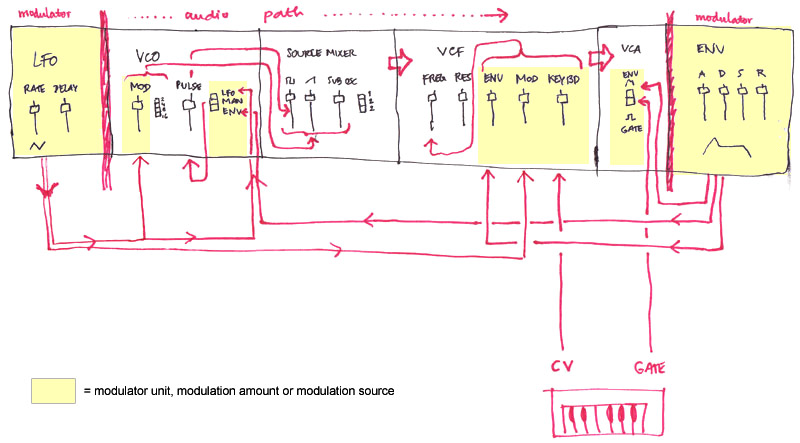

Schematic flow of the synthesizer
The LFO is labelled "LFO" as the VCO pulse width modulator.
The LFO is labelled "MOD" as the VCO pitch modulator and VCF cut off frequency modulator - why...
The Control Voltage of the keyboad is labelled "KEYBOARD" as the VCF cut off frequency modulator ('keyboard follow' intensity).
In the ADSR generator, the A, D and R are time regulators (higher=slower), the S is a volume level regulator (higher=louder).
