How square is the oscillator?

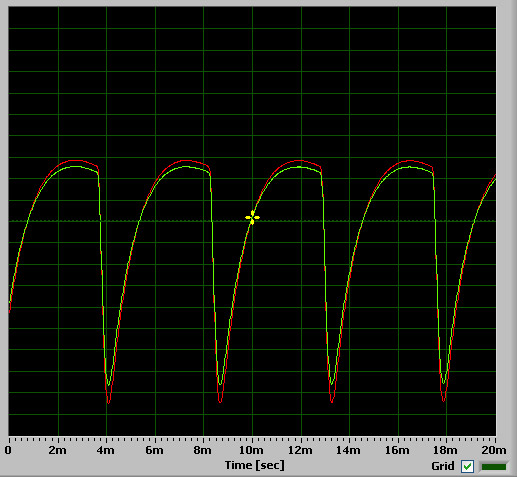

This is how the saw from the TB-303 looks like. I actually had to add 25% of Resonance to make it look more like a saw, which it still does not.

This is the square wave, all knob settings are in neutral:

Funny thing is, I double checked, and these figures are the correct wave representations, but the saw to me looks more like a square, and vice versa. The graph shows a stereo sound (red for left, green for right), which is my mistake.
