track write
when the 303 is slaved to a master (eg the TR-606), the RUN/STOP key is disabled on the 303. please use the RUN/STOP key on the master.

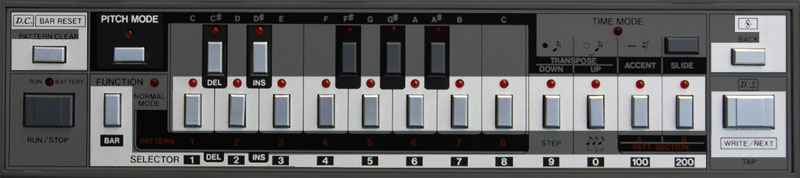

functional buttons during STOP
(exactly the same as Track Play mode, STOP state, except for the added INS and DEL buttons):

track - jump to Bar nr.1 : press "BAR RESET"   shortcut for Bar 1
  - show current Bar nr. : hold BAR   led shows the current Bar number
(see the "led flash" coding convention below)
  - show D.C. location : hold "BAR" + press D.C.   led shows the Bar number
  - show location : hold "BAR" + press   led shows the Bar number
  - jump to Bar nr. : hold "BAR" + press Bar
     number [1..200],
release BAR
  the order of pressing the buttons:
131 => press 100, press 3, press 1
(100 & 3 lights, 1 flashes).
101 => press 100, press 1
(100 lights, 1 flashes).
110 => press 100, press 1, press 0
(100 & 1 lights, 0 flashes).
111 => press 100, press 1, press 1
(100 lights, 1 lights & flashes).
55 => press 5, press 5
(5 lights & flashes).
10 => press 1, press 0
(1 lights, 0 flashes).
  - jump to next Bar : press "WRITE/NEXT"   - "WRITE/NEXT" will proceed beyond D.C.
bar - delete current Bar : hold "BAR" + press DEL   - the remaining Bars and D.C. move to the left to close the gap.
- doesn't move and has to be manually corrected.
  - insert Bar on current : hold "BAR" + press INS   - the current and the remaining Bars, including D.C. move to the right to make room, leaving a copy of the current Bar.
- doesn't move and has to be manually corrected.
pattern - show PATTERN nr. : (none)   led shows PATTERN NUMBER [1..8] A,B
  - show shift info : hold "PITCH MODE"   led shows PATTERN shift [C..C']

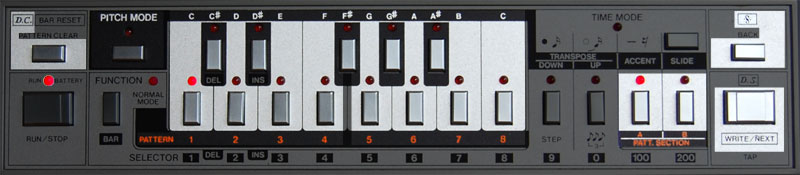

functional buttons during RUN:

track - start edit       loops the pattern of the current Bar,
which can be the last Bar played during TRACK PLAY or the selected Bar using BAR RESET or "jump to Bar"
for every BAR - edit Bar : - to select the Pattern for this Bar:
select A or B,
press [1..8]
OR - to edit 2, 3 or 4 Bars at once, chain the Patterns:
select A or B,
press 2 buttons in [1..4] or [5..8] range.
chaining Bars:
1. chaining xx Patterns will affect xx Bars (page 64 - B.1.b).
2. the chaining info will be discarded after saving and the chained Patterns will be put into individual adjacent Bars, so the actual chaining is lost.
3. in other words: the chain overwrites this and the next xx Bars, there is no "insert".
4. for the D.C. bar: only the first of the chained patterns gets the D.C.
  - to show the shift info for this Bar (or chained Bars):

- to change the shift for this Bar (or chained Bars):
hold PITCH MODE + [C..C']

- to mark the last Bar in this Track:
press "D.C."
> D.C. is actually a Track property, it is always set and never empty.
> you can set to only one Bar.
> D.C. on the 1st Bar is ignored, the sequencer will continue to play the next Bars.
> don't forget to change D.C. when creating a new Track.
> changing the Pattern for a Bar does not change the D.C. pointer.
> D.C. sticks with the PATTERN, so INS and DEL also move D.C.

- to set the continue-from-here sign to the Bar:
> the sign is always set (even when you haven't).
> can be set to only one Bar.
> this sign is still sticked to the same Bar number after INS or DEL.
> always set this sign before the D.C. - not on or after.
  - next Bar : - to save this Bar (or chained Bars) into memory and edit the next Bar:
(there is no back-button)

- to stop editing the TRACK:
press STOP.
press BAR RESET to return to Bar 1.
Tips on memory management:
- a single Track consists of 64 Bars.
- exceeding the 64 Bars of one Track will silently use the memory of the next Track to a maximum of 4 Tracks in total. in this process you can not go past Track number 7. also, you are limited to using only the 16 Patterns from the starting Track.
- deleting Bars works as normal.
- exceeding the last track (whether the 4th Track or Track number 7, whichever comes first) will overwrite the first Bar of your starting Track without warning, so also be careful when inserting Bars.
- when editing, set the Track selector to the Track number of the starting Track.
