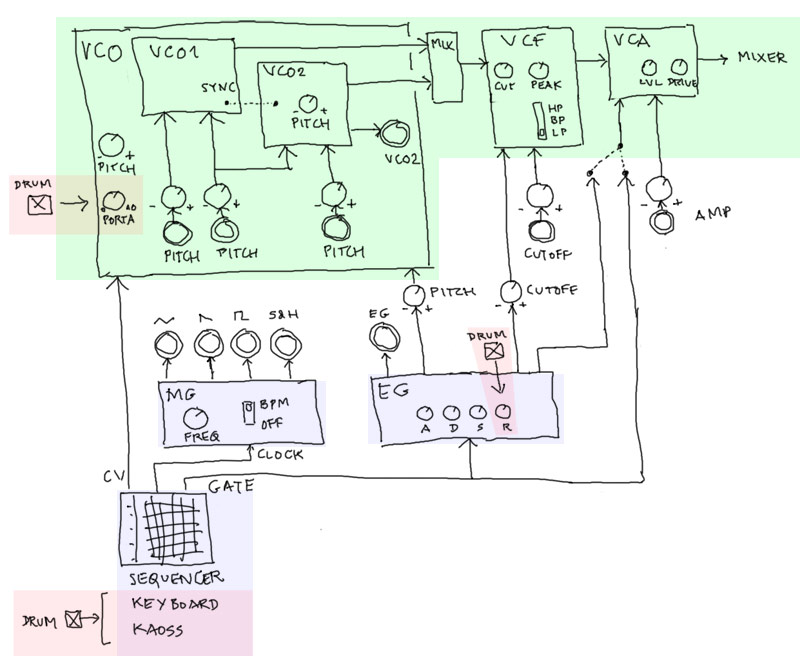

The Synth-screen and the Patch-screen are merged into this drawing.
The drawing is layed out the way the panel on the ARP2600 is layed out: sound travels from left to right, modulators go from bottom to top.
GREEN: The Sound Path starts left at the VCO, and travels through the VCF and the VCA to the Mixer and the Effects.
BLUE: The Modulators start at the bottom and influence the different parts of the Sound Path.
RED: the synth parts that are not part of the drum Synth are marked in red.
Each one of the 6 monophonic Synths contain 2 VCO's, so theoretically you should be able to create chords with 12 notes ;)
